990688 Low Voltage Wiring

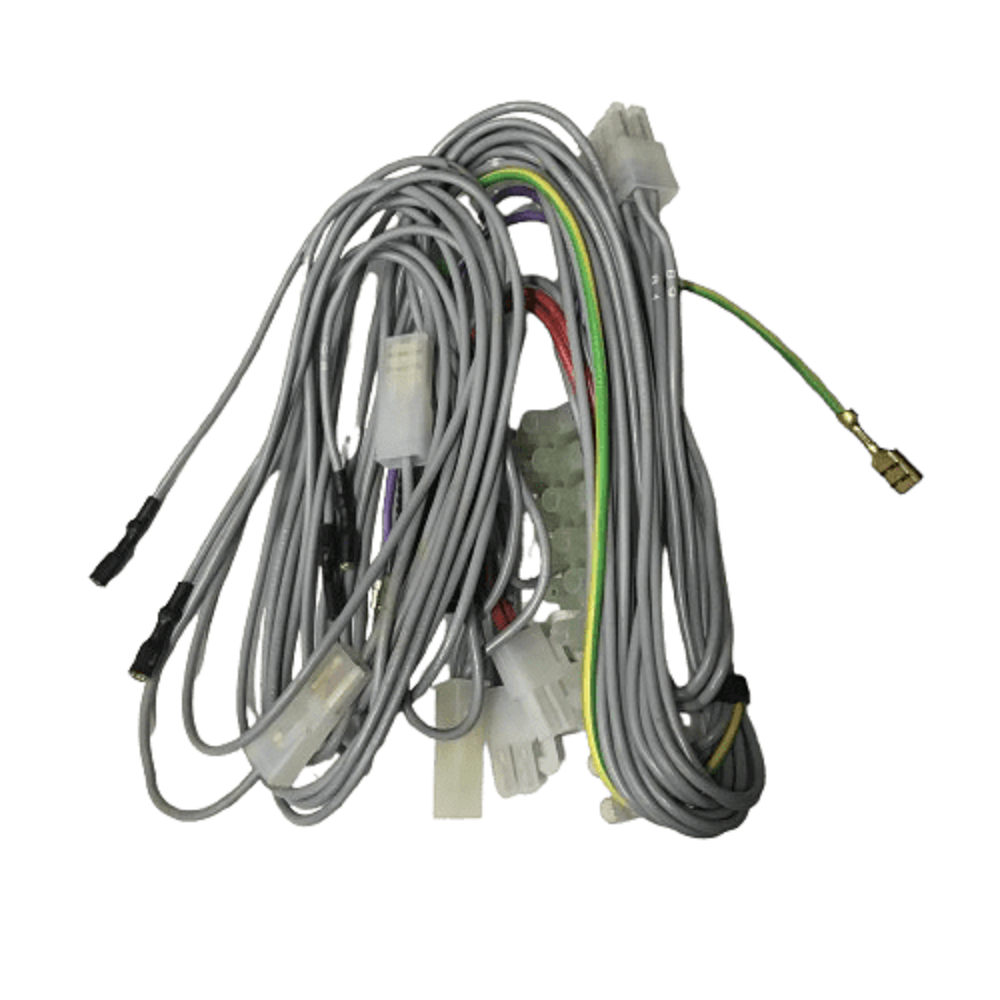

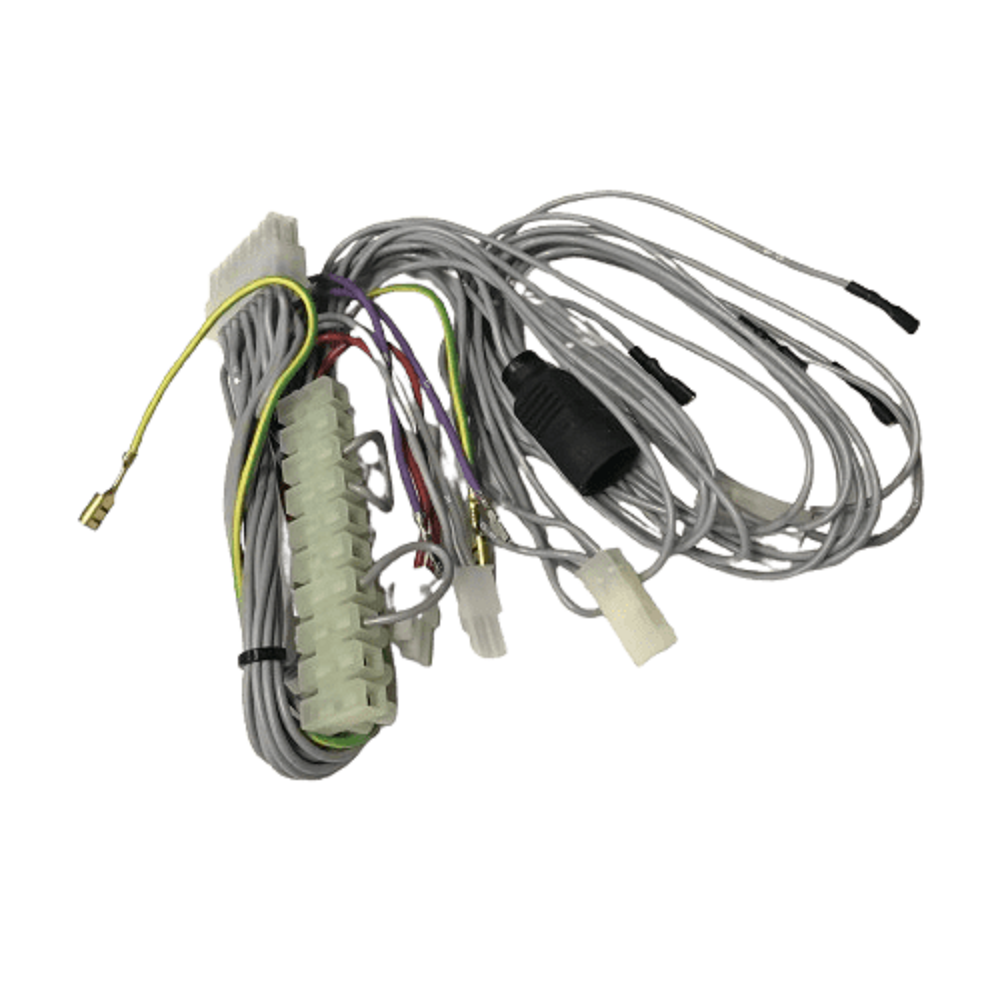

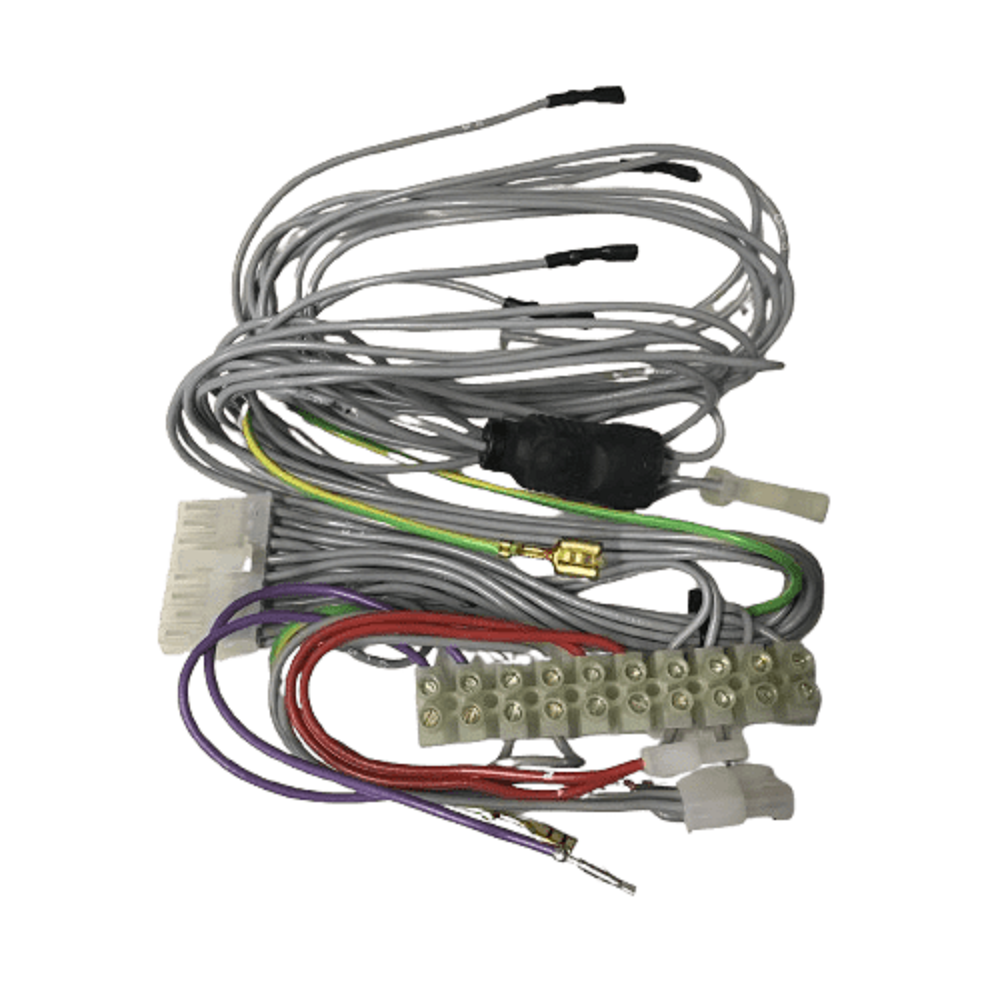

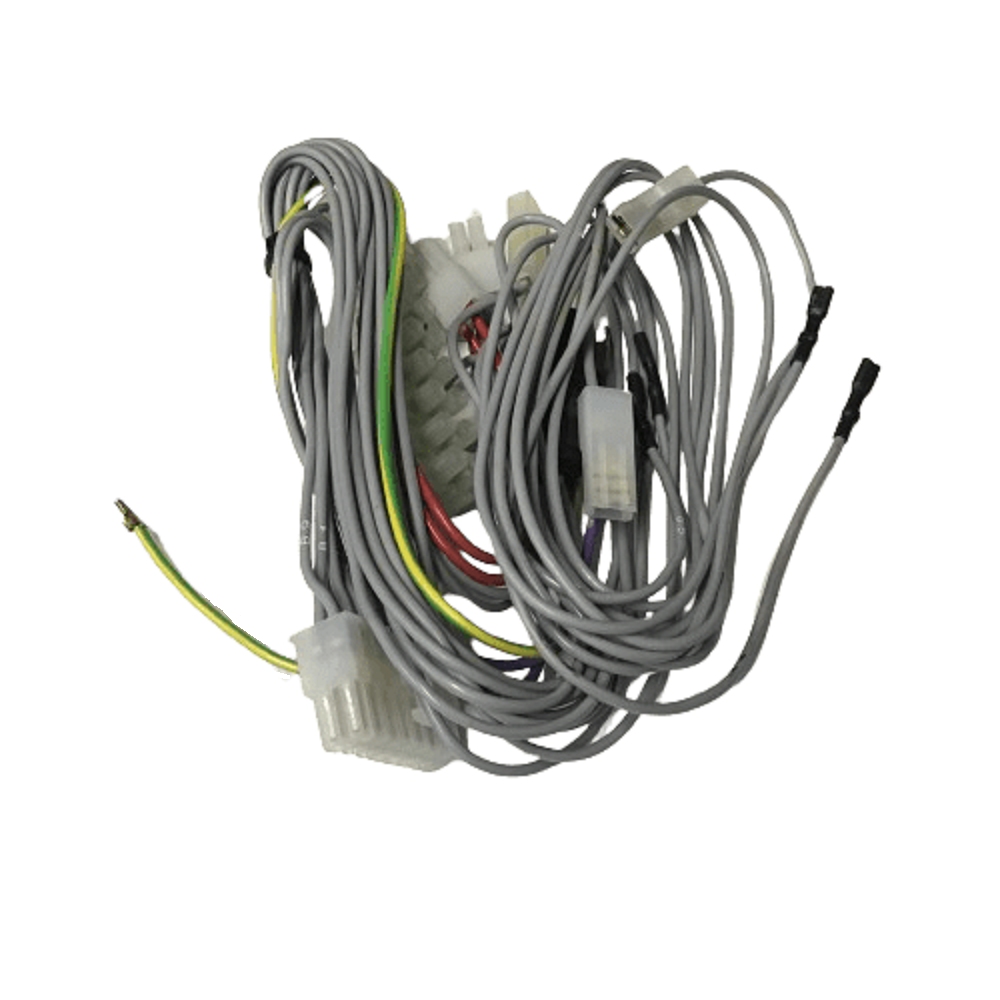

Ariston 990688 Low Voltage Wiring

This Low Voltage Wiring is for use with the following:

• Ariston Ecocombi 27 Mffi Ng Edition 1 (Oct 2002)
• Ariston Ecocombi 27 Mffi Lpg Edition 1 (Oct 2002)
• Ariston Ecocombi 27 Mffi Ng Edition 2 (Sept 2004)
• Ariston Ecocombi 27 Mffi Lpg Edition 2 (Sept 2004)

The wiring in an appliance connects the electronic control to the numerous switches, sensors and thermostats .

These groups of wires allow the pcb to control the heating appliance and enact safety protocols.

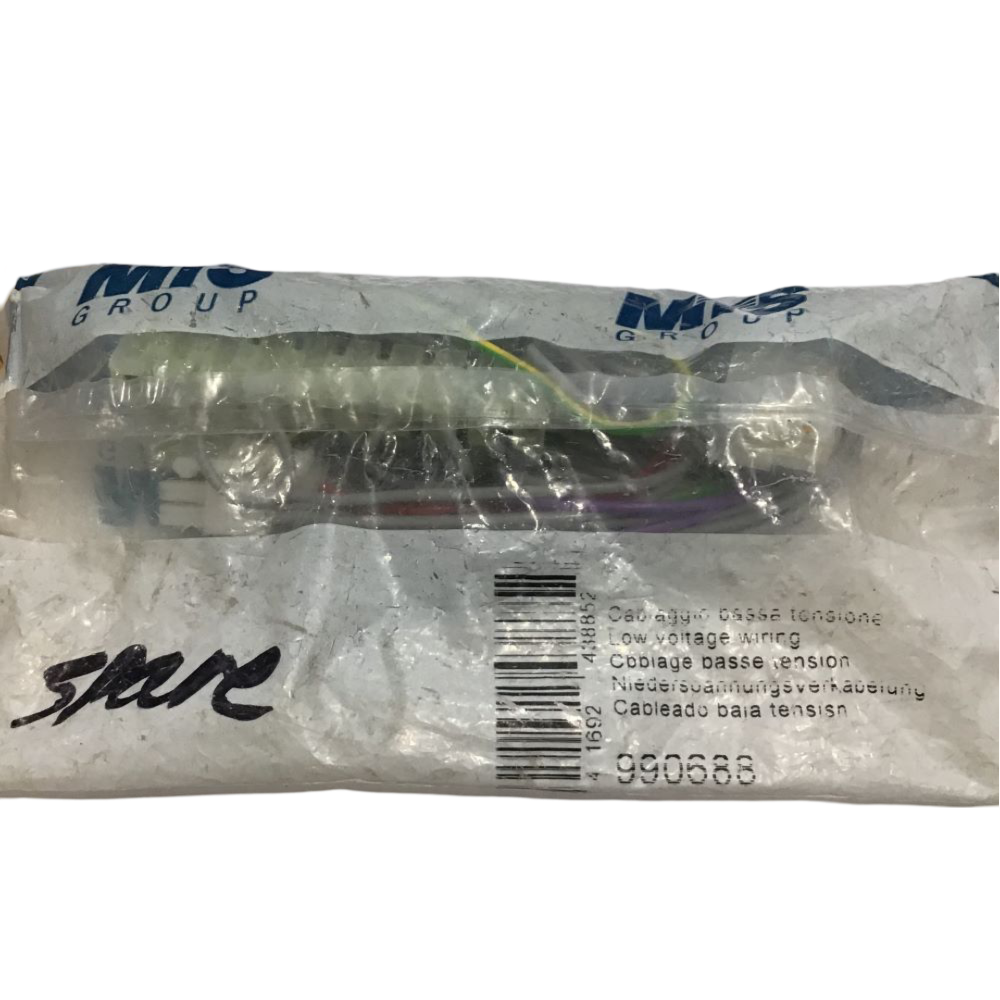

Packaging has been opened for photography purposes only
